Large Vertical Coal Powder Ash Storage Tank

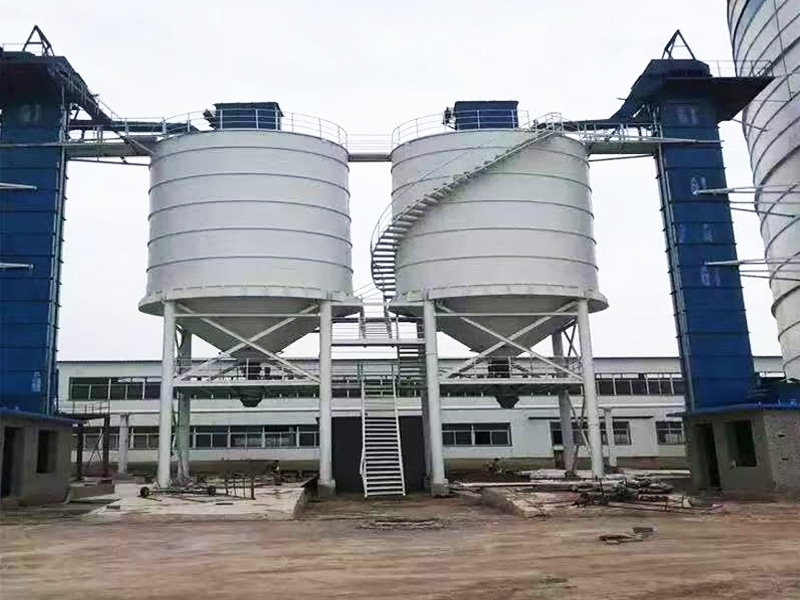

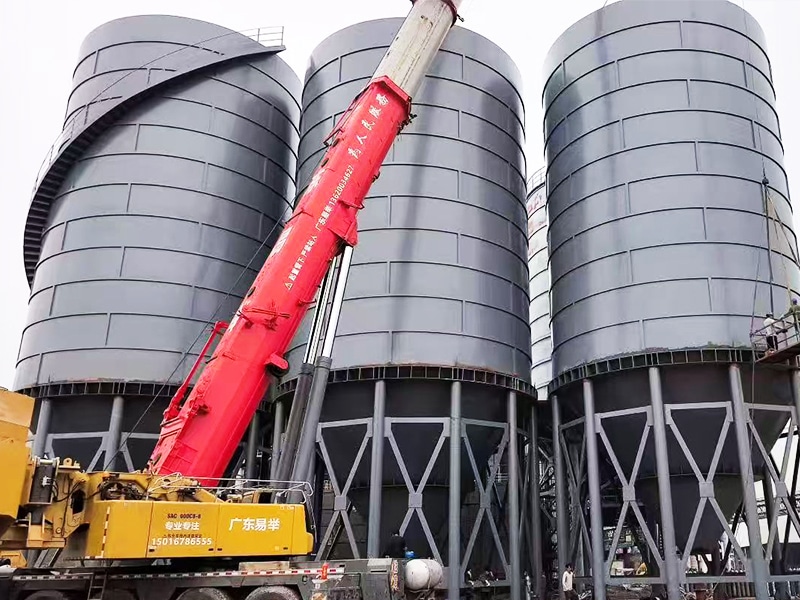

Custom High-Capacity Fly Ash Storage Silo Tank

Product Structure

• Reinforced Carbon Steel Cylindrical Shell: A heavy-duty, multi-tiered vertical body constructed from high-tensile structural steel, engineered to handle immense vertical loads and dense bulk materials.

• Integrated Top Safety Handrail & Inspection Deck: Features a perimeter guardrail system at the apex (as seen in the image) for safe maintenance access, level sensor calibration, and pressure relief valve checks.

• Conical Discharge Hopper: A precision-engineered, heavy-gauge bottom cone designed with an optimized flow angle to ensure smooth, gravity-fed material discharge and prevent bridging or ratholing.

• Heavy-Duty Structural Support Legs: Robust vertical steel columns braced with high-strength cross-members, securely anchoring the elevated silo and transferring massive structural loads to the concrete foundation.

• Pneumatic Feeding & Venting Lines: Equipped with high-integrity pipe connections for efficient pneumatic material loading, paired with top-mounted dust collection interfaces to manage displaced air.

• Fluidized Discharge System Interface: Specialized port arrays at the bottom cone for installing fluidization pads or aeration nozzles to maintain material flowability.

Product Advantages

Durable heavy industrial fly ash storage silos, featuring excellent load-bearing capacity, moisture-proof sealing, and smooth discharge performance, can be customized in terms of size and structure to meet the requirements of various bulk material handling projects.

• Superior Moisture & Weather Proofing: The fully sealed vertical structure prevents external moisture ingress, protecting hygroscopic powder materials like fly ash from clumping or hydrating.

• Optimized Space Utilization: The vertical, elevated design minimizes the ground footprint while maximizing bulk storage capacity, making it ideal for space-constrained industrial sites.

• Smooth Material Flow: Engineered with a smooth-walled interior and a precision conical bottom to facilitate consistent mass flow, reducing material retention and operational downtime.

• Maximum Structural Compliance: Designed and tested to withstand high wind loads, seismic forces, and internal dynamic pressures caused by mass material movement.

• Efficient Pneumatic Handling: Seamlessly integrates with industrial bulk blowing trucks and automated conveyor systems for rapid, dust-free loading and unloading cycles.

Material & Specifications

Technical Parameters

• Material Density Accommodation: 0.8g/cm³ to 1.6g/cm³ (Optimized for fly ash, cement, and slag powder).

• Design Pressure: Hydrostatic material load with atmospheric internal pressure (Pressure-assisted discharge options available).

• Discharge Mechanism: Pneumatic fluidization, rotary valves, or screw conveyor integration.

Application Scenarios

• Concrete Batching Plants: Serving as primary storage units for fly ash and cement admixtures to ensure continuous commercial concrete production.

• Thermal Power Plants: High-capacity storage for collected fly ash from electrostatic precipitators before bulk transport or recycling.

• Cement Manufacturing Facilities: Serving as intermediate or bulk storage silos for raw material mixing, grinding, and clinker processing lines.

• Infrastructure & Road Construction: On-site material storage for large-scale bridge, highway, and dam foundation stabilization projects.

• Environmental Waste Recycling: Storage and handling of dry industrial powders, mineral slag, and recycled environmental byproducts.
